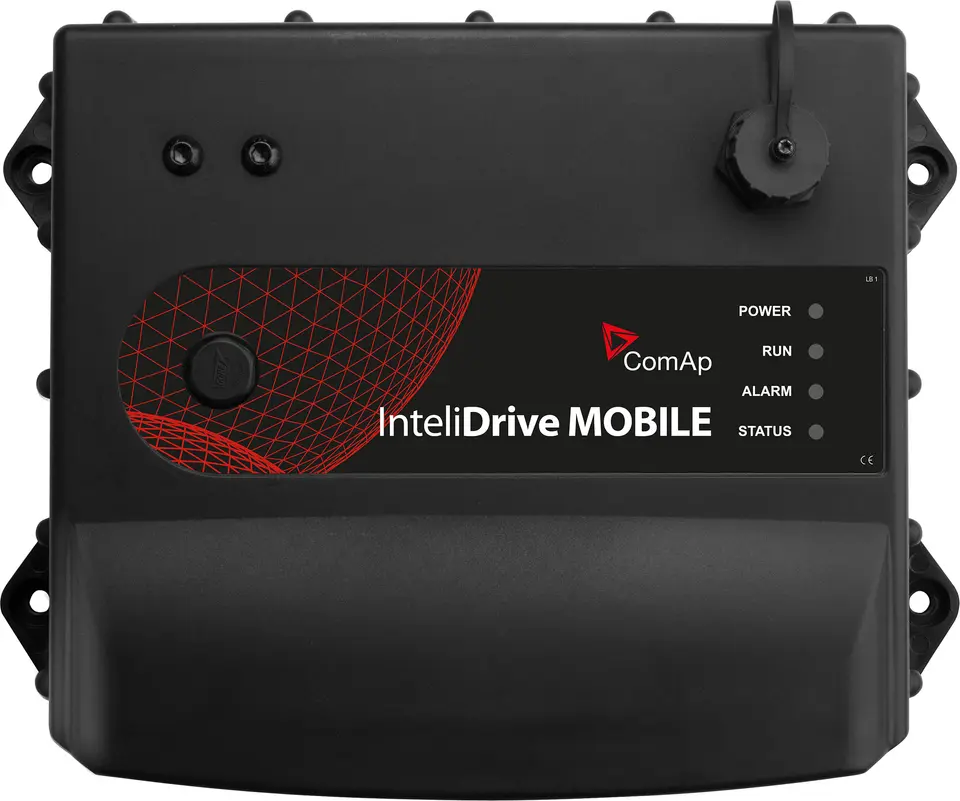

ComAp InteliDrive Mobile Controllers

InteliDrive Mobile

Order code: ID-MOBILE

This product is obsolete, availability might be limited.

Electronic controller for off-road vehicles and machinery.

Powerful, flexible and fully configurable
Designed for harsh environment
Integrated solution includes powerful PLC
Includes local and mobile communication
With GPS localisation

English (17 Apr 2024)

Manuals

2 files

English (8 Apr 2024)

Software

2 files

English (26 Apr 2024)

English (17 Apr 2024)

Show resource hub for this product

Overview
Related products

Overview
Related products

The InteliDrive Mobile offers:

Diesel/gas engine control, monitoring and protection for off-road applications such as construction, quarrying and engineering equipment
Control of hydraulic systems and engine driven compressors and pumps
Designed for harsh environments - the unit construction features a fully environmentally sealed enclosure and connector
Plug & Play EFI (ECU) engine support (CAN/J1939)
Master Slave Concept Support
Remote monitoring support
Fleet management via GPRS/GPS, GeoFencing
Integrated PLC functions: Analog switches, Comparators with delay or hysteresis, Counters, Delay functions, Filters, Linear interpolation, Logical and Mathematical functions, PID loops, Timers
Built-in event & Performance Log
History log out – monitoring of wide range of parameters
4 Binary inputs with detection of broken wire
12 Binary bi-directional inputs for contacts switching8 Binary configurable switches (High-side/Low-side 3A, PWM 3A, DC motor driver)
8 Binary Hi-side switches with max. current 3A and detection of broken wire
8 Analog configurable inputs for industry standard sensors
8 Analog configurable inputs/outputs
2 Impulse inputs for rotary flowmeters
4 Frequency inputs for RPM measurement
Running-hours meter, number of starts counter
Integral fuel consumption measuring
Communication interface: RS485, 2xCAN, J1939
3 various displays via CAN bus
Functional safety according to IEC 61508
EMC compatibility, Vibration resistivity
Dust and water protection IP 67
Operating temperature: –40 to +80°C
Internal GPS and GPRS modem (Optional)

Accessories

InteliVision 5 CAN Backlit

InteliVision 5 CAN Backlit is an easy-to-use display for marine applications. Equipped with a with 5.7” colour screen and backlit keyboard, this intuitive plug&play solution with a CAN bus interface provides comprehensive visual overview of all engine data and monitoring information on a colourful display. The display has a robust and resilient design and can be used without any problems in environments with extreme conditions. This product has the Germanischer Lloyd MARINE certification approval.

InteliVision 5 CAN

InteliVision 5 CAN is an easy-to-use industrial operator panel equipped with 5,7” colour screen for monitoring of single gen-sets for various applications. This intuitive plug&play solution with a CAN bus interface provides comprehensive visual overview of all engine data and monitoring information on a colourful display. The display has a robust and resilient design and can be used without any problems in environments with extreme conditions.

ID-Mobile Harness 6

Cable Accessory for ID-Mobile.

Inteli IO8/8

Binary Inputs/Outputs and analogue Outputs module.

IS-AIN8

Analogue input module.

IS-BIN16/8

Binary Input/Output module.

InteliVision 12Touch

Intuitive, easy-to-use and simple to configure, the InteliVision 12Touch is an industrial operator panel equipped with 12.1” colour, multi-touch screen. Compatible with the majority of ComAp’s controllers, it provides comprehensive visual overview to monitor and control single gen-sets for various applications.

DriveConfig

DriveConfig is an intuitive software tool that enables you to quickly and effectively configure and program your controllers. The tool is compatible with ComAp’s InteliDrive DCU Marine/Industrial, InteliDrive Mobile, InteliBifuel and InteliBifuel Mobile/Lite controllers.

IGL-RA15

Remote annunciator.

I-AOUT8

Analogue output module.

I-LB+

Communication bridge for local monitoring and control of multiple controllers. This module enables easy and smooth commissioning and maintenance of a group of gen-set controllers by linking data from all controllers into the configuration/monitoring software tool.

InteliVision 8

InteliVision 8, industrial operator panel equipped with 8” colour screen, is designed to support the monitoring and control of single gen-sets’ operations for various applications. A simple and easy-to-use plug&play solution, it provides comprehensive overview of all engine data, monitoring information and trend history. The InteliVision 8 is intended for the ComAp InteliGen NT, InteSys NT, InteliMains and InteliDrive family of controllers.

WinScope

WinScope is a high-performance PC tool used for monitoring and archiving trends. The tool enables quick and easy adjusting of setpoints to achieve optimal functionality and maximum performance of your gen-set. WinScope 1000 is available and can work in demo mode, free basic mode or paid advanced version, which can monitor up to 32 controllers and channels. WinScope 1000 is the newest generation of our WinScope tool.

IGS-PTM

Analogue/binary Input/Output module.

InteliMonitor

InteliMonitor is an online monitoring and controlling software tool for ComAp devices and accessories that can be used for unlimited number of sites. The tool provides auto-generated SCADA to help you gain detailed overview of your site and gen-set operations.

InternetBridge-NT 4G

Communication module for internet connection to one or more controllers. This module enables remote communication for asset monitoring via both wired and wireless connection.

DT-KIT set

Input/Output Simulator for InteliDrive controllers.

Set of Connectors ID-Mobile / Logger

Connector Accessory for InteliDrive Mobile.

Inteli AIN8TC

Peripheral module, extension module - 8 thermocouples inputs.

Inteli AIN8

Module with 8 analogue Input channels and 1 RPM/Impulse Input.

Related products

InteliDrive DCU Industrial

Engine controller for land-based applications powered by engine driven compressors and pumps.

InteliDrive FLX Lite

The InteliDrive Lite is a reliable engine controller that will protect and ensure stable control of your diesel or gas engine in accordance with today’s demanding conditions.This controller is suited for pump or compression control. It has a seamless connection to ComAp’s cloud-based services, offering remote monitoring of your devices anytime, anywhere.

InteliDrive WP

Engine controller with a small form factor.

InteliDrive EM

Engine controller for electric asynchronous motors.

InteliDrive Mobile Logger

Data Logger for Diesel Engine Driven Mobile and Industrial Applications.

InteliDrive IPC Plastic Panel

InteliDrive IPC controller in the plastic panel.

InteliDrive Fire Pump

Engine controller designed for diesel-driven fire pump applications.

InteliDrive IPU

Industrial Power Unit controller.
