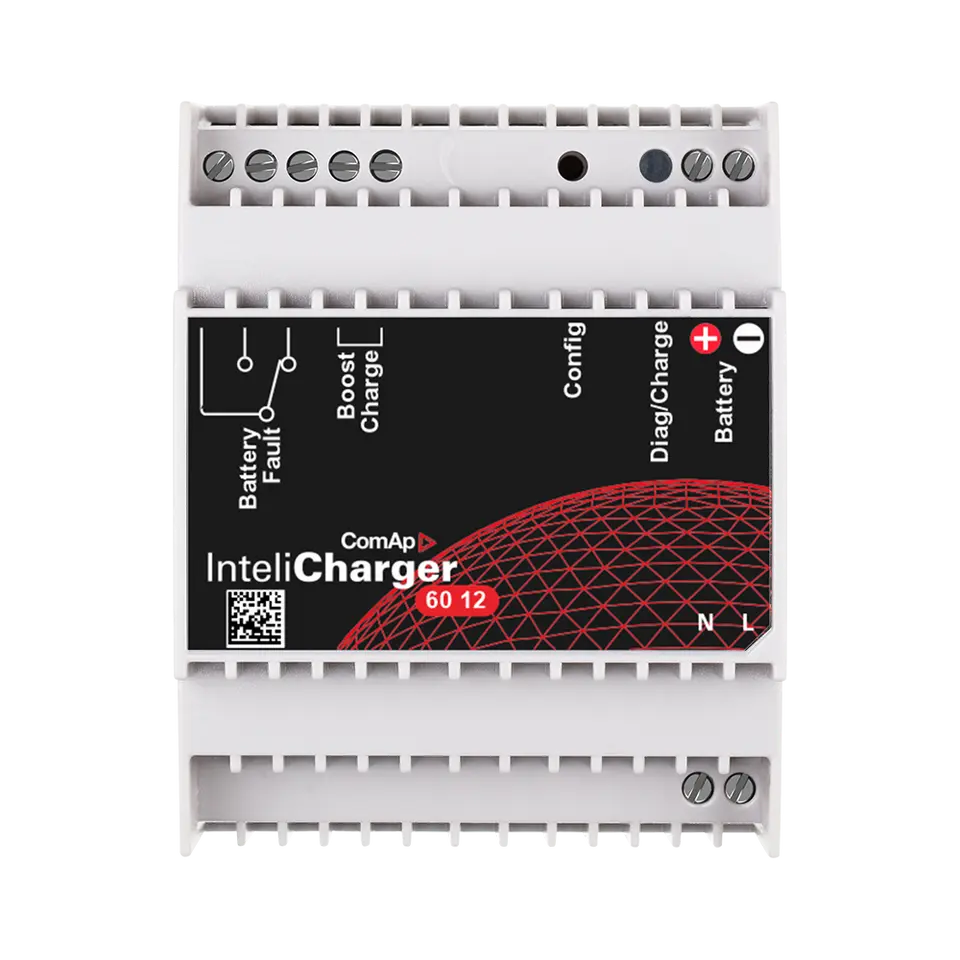

InteliCharger 60 12

Order code: BC212V05BOB

Automatic battery charger 12V / 5A with charging fail relay.

The InteliCharger 60 12 is an advanced, automatic, multi-stage battery charger suited to meet the most advanced requirements of battery manufacturers in a cost effective package. The charger's auto-diagnostic system monitors battery faults such as cells in short circuit, accidental reverse polarity connection, disconnection of the battery. The InteliCharger 60 12 is convenient for Open Lead Acid, Sealed Lead Acid, Gel and NiCd–NiMH battery types. It can also be used in power supply mode.

    InteliCharger 60 12

Key features:

  • Micro-processor control
  • Fully automatic operation
  • Cost effective
  • Suited for the following battery types: Open Lead Acid, AGM, GEL, Ni-Cd–NiMH
  • Charging type: Boost, Absorption, Float, Recovery
  • Fast charge (Boost) with external contact
  • Protections: Short-circuit, Overload, Over voltage, Over temperature, Reverse battery
  • Diagnosis: Reverse polarity, Short Circuit, Battery disconnection, Wrong battery voltage
  • Signal output terminal indicating fault Battery / Charger (Voltage free contact)Blink code diagnostic LED
  • Power Supply mode (can be used as a standalone power supply)
  • Passive cooling
  • Universal AC input ranges
  • DIN rail mounting
