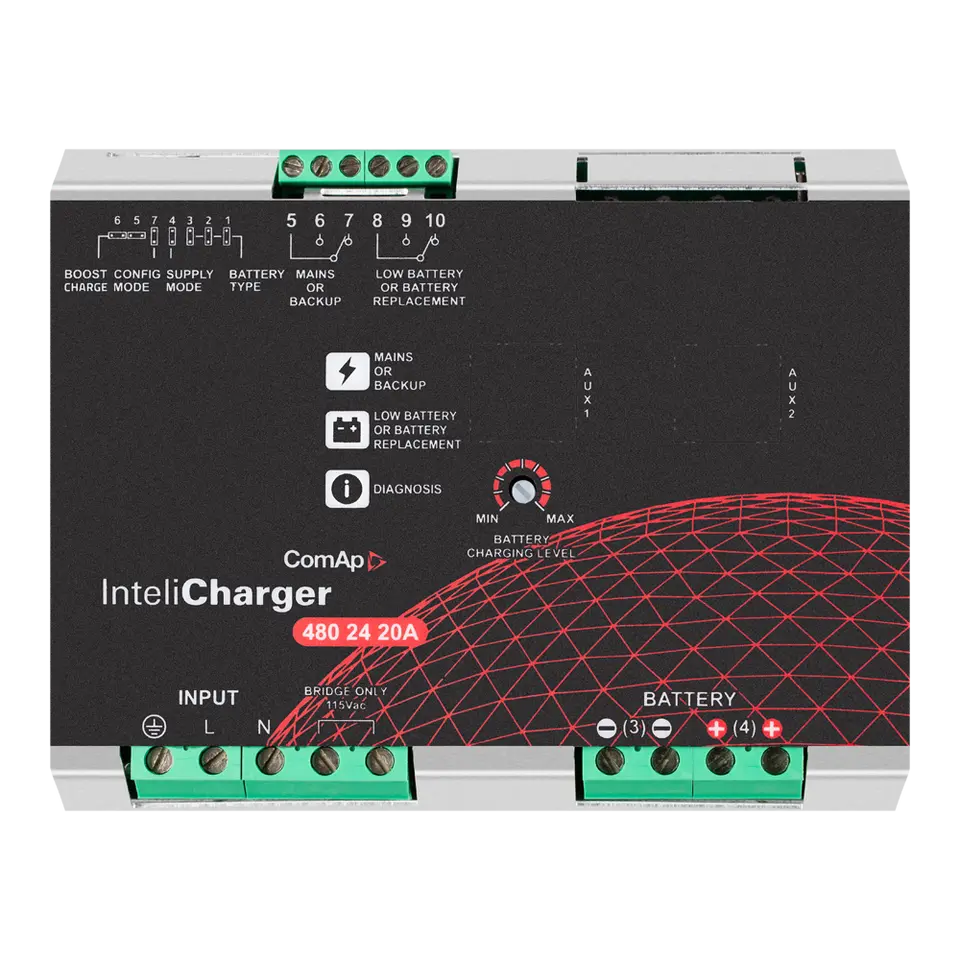

InteliCharger 480 24 20A

Order code: BC224V20BOB

The InteliCharger 480 24 20A is an advanced, automatic, multi-stage battery charger using switch-mode technology and battery care philosophy. The battery care concept is based on algorithms that implement automatic battery charging, battery life optimisation, flat batteries recovery and real time diagnosis. The charger is suitable for all standard battery types and can meet the most advanced requirements of battery manufacturers.

Datasheet

English (23 Mar 2023)

Manuals

2 files

Global Guide

English (21 Mar 2023)

ICHG 480 24V 20A MODBUS Parameters

English (22 Jun 2023)

InteliCharger Conformity Declaration

English (7 Feb 2024)

Show resource hub for this product
  • Overview
  • Overview
    • InteliCharger 480 24 20A
    Overview

The InteliCharger 480 24V 20A offers:

  • Suited for the following battery types: Open Lead Acid, Sealed Lead Acid, Lead Gel Li-Ion
  • Automatic battery status diagnosis
  • Four charging stages: recovery, boost, absorption and float
  • Switch-mode power supply technology for battery charging
  • Power supply mode
  • High efficiency (≥ 91 %)
  • Protection from short circuit, reversed polarity, overload and overheating
  • Signal output terminal (voltage free contact) for faulty battery state, for main’s power input fail signaling
  • IP20 protection
  • Temperature-compensated charging
  • MODBUS RTU communication
  • DIN rail mounting
