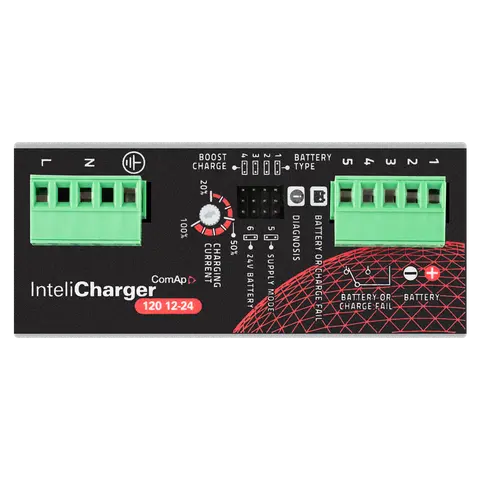

InteliCharger 120 12-24

Order code: BC11224VBOB

Advanced automatic battery charger for 12V/6A or 24V/5A.
    InteliCharger 120 12-24

The InteliCharger 120 12-24 is an advanced, automatic, multi-stage battery charger using 'switch mode technology' and 'battery care philosophy', suited to meet the most advanced requirements of battery manufacturers.

  • Main Characteristics:
      • 24 V / 5 A or 12 V / 6 A nominal output (dual voltage)
      • Adjustable voltage and current output
      • High efficiency ≥ 90 %
      • Universal AC input range
      • Automatic battery status diagnosis
      • Microprocessor controlled charging algorithm
      • Four charging stages
        • Recovery
        • Bulk
        • Absorption
        • Float
      • Protections
        • short circuit
        • overload
        • over temperature
        • reverse battery
        • battery under voltage
      • Blink code diagnostic LED
      • Fail alarm relay, resp. signal output terminal for discharged or damaged battery and charging fail signaling.
      • Battery support:
        • Open Lead Acid
        • Sealed Lead Acid
        • Lead Gel
        • NiCd–NiMH
      • Can be used as a standalone power supply
      • Naturally cooled
      • IP20 protection
      • DIN rail mounting
      • UL Recognized
  • Suitable for the following applications:
    • Standby generators
    • Prime power Generators
    • Engine driven pumps/compressors
    • DC breaker tripping systems
    • Automotive or Marine
    • Alarm systems
    • Industrial control systems
    • Robust PSU
    • Electric vehicles
    • Switchgear
